Brand: WIKA
Bimetal thermometer Temperature Gauge
Product Features
Nominal sizes 63, 80, 100, 160 mm [2.5, 3, 4, 6"]
Robust, hermetically sealed case
External reset for setting the reference temperature
Dished dial (anti-parallax) for ease of reading

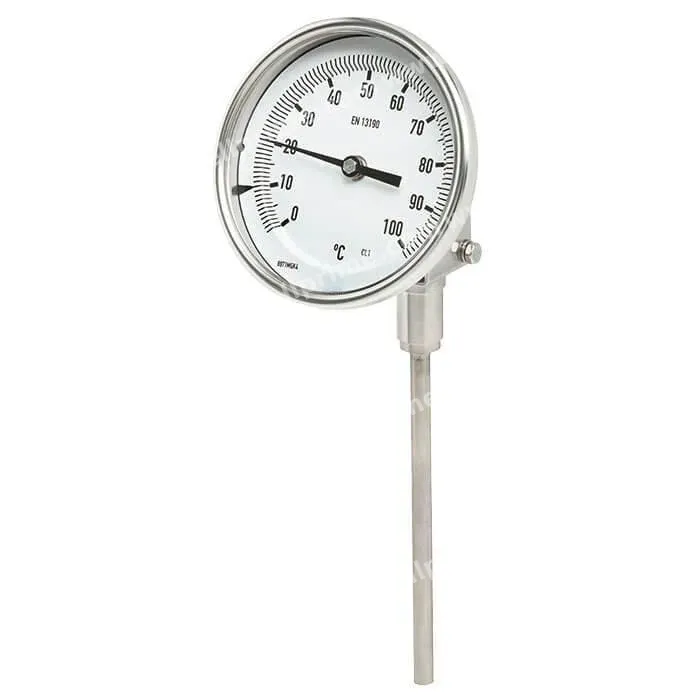

Adjustable stem and dial version enables optimal process connection
Warranty & Support
Standard 12-month manufacturer warranty with optional extended service packages. Contact our engineering team for commissioning support.
The bimetal thermometer has been developed and is manufactured in accordance with the EN 13190 standard. The thermometer meets the high requirements of the process industries. Especially in the chemical and petrochemical, oil and gas, power engineering and shipbuilding industries, the temperature measuring instrument manufactured from stainless steel is used successfully. The robust, hermetically sealed case with IP65 ingress protection enables use with harsh external conditions and high vibration. With a count of four different nominal sizes, an optimal matching to the available space and mounting conditions is possible. At an easily accessible point on the back of the case, the zero point can be easily corrected. Meets the high requirements for resistance against aggressive media. As an option, the case, the stem and the process connection can be made from 316L.
