Brand: WIKA

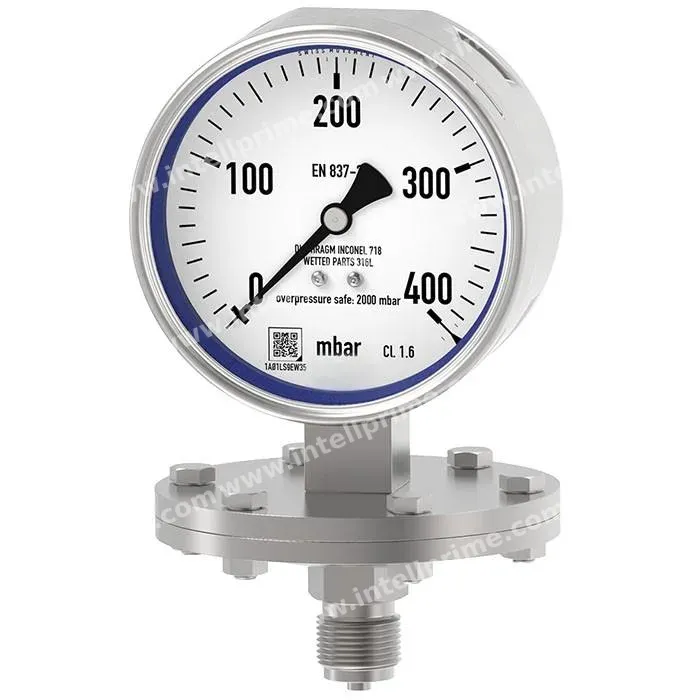

Diaphragm pressure gauge
Product Features
Case and wetted parts from stainless steel
Wide choice of special materials
Process connection thread or open flange
Scale ranges from 0 … 16 mbar
QR code on dial links to instrument-specific information
Warranty & Support
Standard 12-month manufacturer warranty with optional extended service packages. Contact our engineering team for commissioning support.
Diaphragm pressure gauges are preferably used for low pressure ranges. Through the large working surface of the circular, corrugated diaphragm element, small pressure ranges can be measured reliably. Diaphragm pressure gauge is manufactured in accordance with EN 837-3. The high-quality design is particularly suitable for applications in the chemical and petrochemical industry, oil and gas industry and power engineering. The case and wetted parts from stainless steel fulfil high requirements for resistance against aggressive media. For especially high resistance requirements, the pressure chamber of this diaphragm pressure gauge can be designed with a wide variety of special materials such as PTFE, tantalum or Hastelloy.
